Servo Heat Sealing Filling Packing Machine 5.5kw Sus304 Liquid Packaging With Servo Motor

Name: Servo Heat Sealing Filling Packing Machine 55kw Sus304 Liquid Packaging With Servo Motor
Brand: Gracias
Price: 1 USD

Brand Name : Gracias

Model Number : YH-YY50

Place of Origin : China

MOQ : One set

Price : As discuss

Payment Terms : TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING

Supply Ability : 50 sets per month

Delivery Time : 25-30 work days

Packaging Details : Standard export packaging

Voltage : 220V 50Hz

Warranty : 12 months

Condition : New

After-sales Service Provided : Online support, Video technical support

System : PLC

Contact Now

Liquid Packaging With Servo Motor

Servo Heat Sealing Filling Packing Machine 5.5kw Sus304 Liquid Packaging With Servo Motor

Applications:

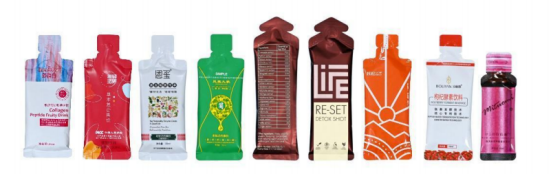

lt is suitable for automatic packaging of liquid paste products indaily chemical, food,health care and pharmaceutical industries, such as: mouthwash; energy drink, energy jelly,energy supplement, etc.;syrup,red ginseng drink, grain healthcream,etc.

Freature:

Adopt high configuration: Siemens PLC controller and colortouch screen operation; Taiwan AIRTAC cylinder; FranceSchneider switching power supply, etc.
Servo heat sealing bag. vertical sealing without stickers.exquisite bag type.
Material: The contact part of the box and material is made ofSUS304, which is in line with GMP production.
The heat-generating parts and moving parts are hidden inthe protective cover, which is safe and reliable.
The equipment is equipped with casters for easy handlingand movement.

Parameter:

MODEL NUMBER	YH-YY50
Fillig range	1-60ML
Sachet size	W:25-100mm L:30-180mm
Max.film width	220mm
Sachet type	Rounded back seal with easy tearing,longitudinal seal twisted edge seal
Filling range	Pneumatic pump/magnetic pump/UBA pump
Capacity	20-35bags/mins PPM
Power voltage and consumption	220V50-60HZ/5.5KW
Air pressure and consumption	0.3m³/min 0.6-0.8Mpa
Dimension(LWH)	93015002400mm
Weight	400KG
Packaging film materials	PE laminated film, such as PET/AL/PE.PET/PE,Nylon/PE. etc. Thickness: 0.08~0.12mm(3 or 4 layers): Inner core diameter: 75mmOuter roll diameter: 300-500mm
